Description
features
-
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology. -
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed. -
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed. -
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage
performance. -
M.2 Shield FROZR
M.2 thermal accessory keeps M.2 SSDs safe while preventing
throttling, making them run faster. -
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance. -
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network
experience. -
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps. -
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.
specifications

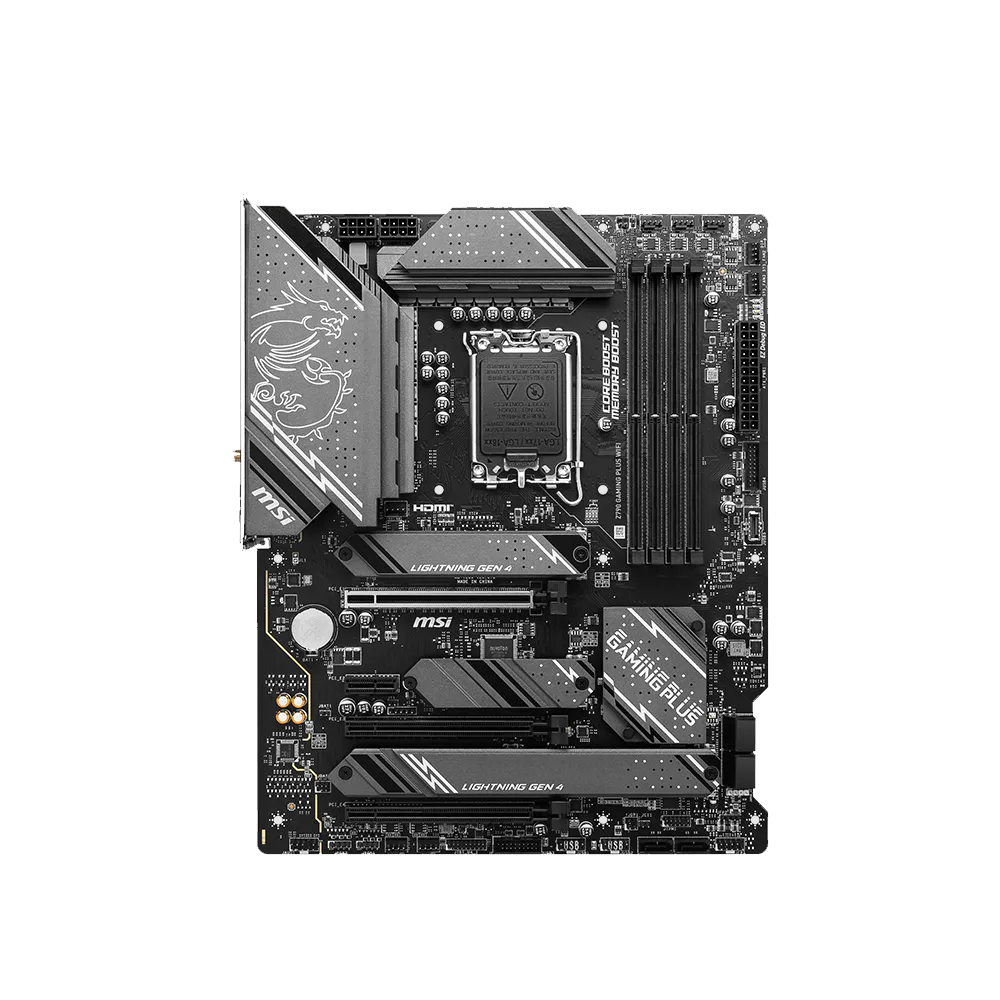

- Model Name Z790 GAMING PLUS WIFI
-
CPU Support Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel®
Pentium® Gold and Celeron® Processors - CPU Socket LGA 1700
- Chipset Intel® Z790 Chipset
-
Expansion Slots 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 2x PCIe 3.0 x1
slots -
Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort
1.4 – Requires Processor Graphics - Memory Support 4 DIMMs, Dual Channel DDR5-7200+MHz (OC)
- Storage 4x M.2 Gen 4 x4 64Gbps slots
- 6x SATA 6Gbps ports
-

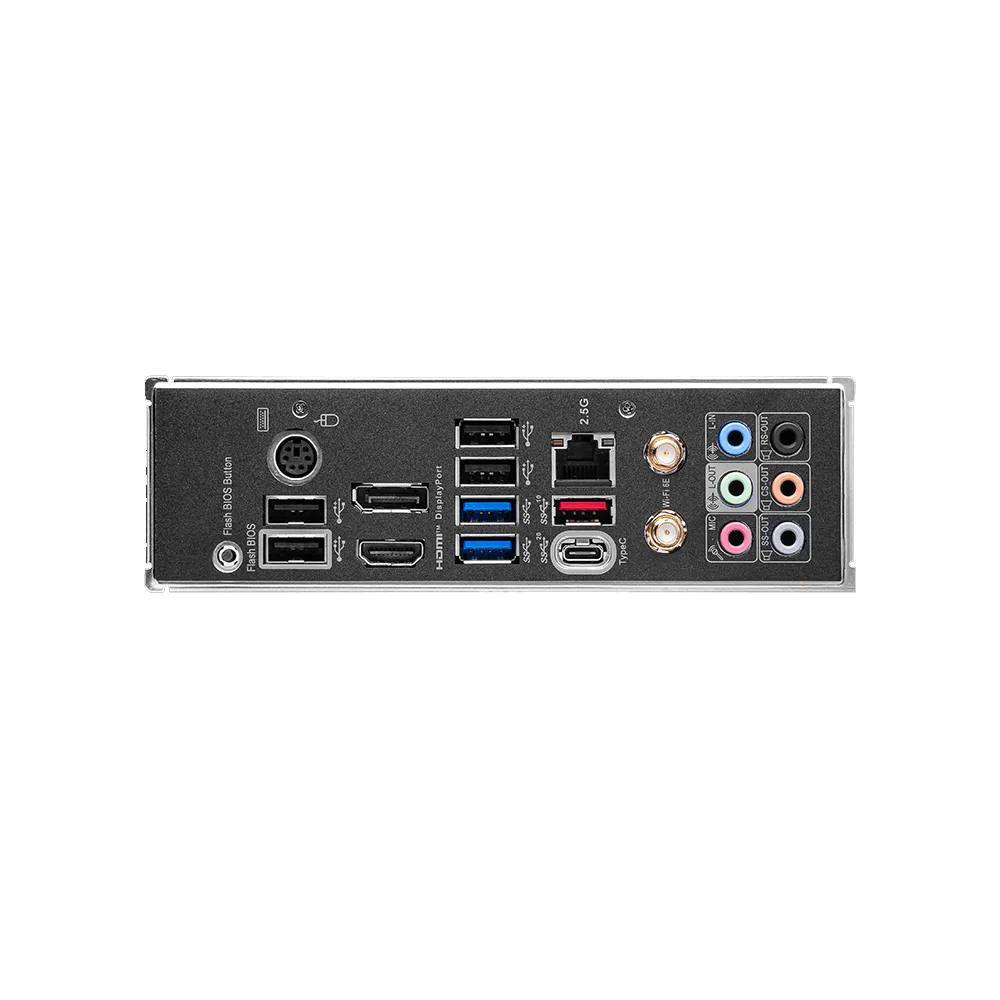

USB ports 1x USB 3.2 Gen 2x2 20Gbps (Type-C),
2x USB 3.2 Gen 2 10Gbps (Type-C + Type-A),
6x USB 3.2 Gen 1 5Gbps (6 Type-A),
8x USB 2.0 - LAN Intel® 2.5G LAN
- Wi-Fi / Bluetooth Intel® Wi-Fi 6E, Bluetooth 5.3
- Audio 8-Channel (7.1) HD Audio with Audio Boost
- warranty : 1 year
